CURRENT LEGACYSYSTEMSVSNEXT GENERATIONMESH NETWORKS

Requires onsite staff for network management, frequent service calls
Cannot support many simultaneous users
End-user complaints, can’t connect, too slow
Low power and dead zones causes poor connectivity
Network congestion, multiple devices cause connectivity problems, reduced work productivity

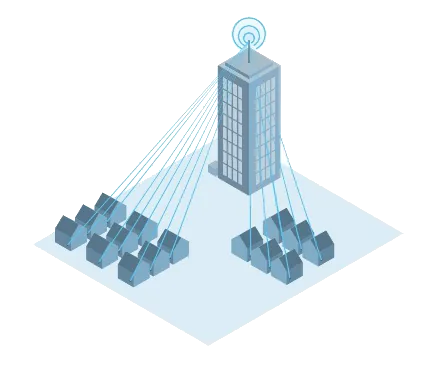

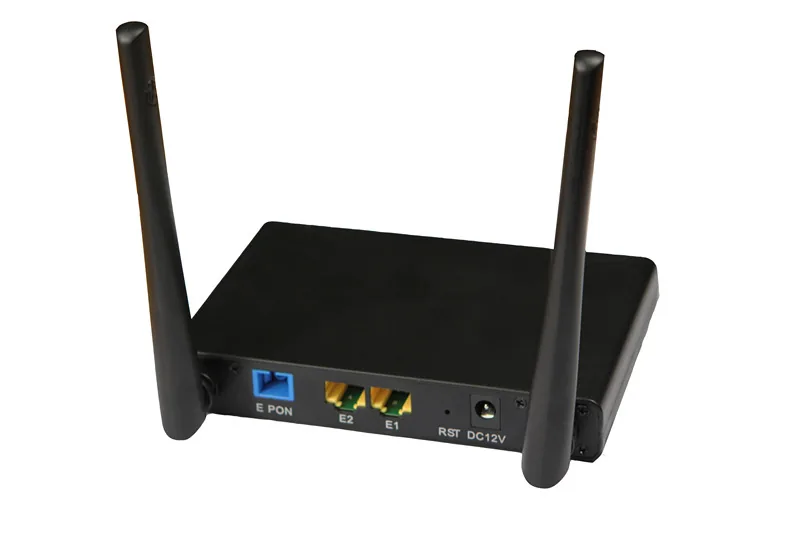

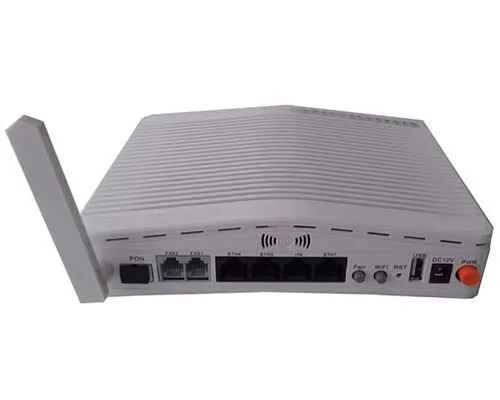

Most installations today are independent access points, which are not designed to work together so they fight with each other creating network problems and congestion
No backup, frequent outages
Network goes down, work stops

Self Healing, prevents outages, no onsite staff or service calls required
Supports 100’s to 1,000’s of simultaneous users
Eliminate end-user complaints

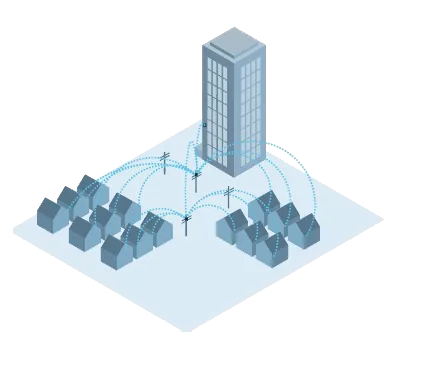

Powerful, Mesh Technology, no dead zones
Handles high amounts of network traffic, seamless integration between networked devices
Redundant hosting for 99.99% cloud uptime
Automatic failover to a healthy access point if another access point fails

Power cycle - reboots any device or the entire network automatically when failure occurs
Configure, change settings, control and monitor the network remotely with our cloud management console
Monitoring and support, programmable event alerts every 5 minutes

Expensive requires on-site staff
All maintenance and network failures require on-site service by staff
Cannot easily be scaled up in size, requires fixed locations and distances

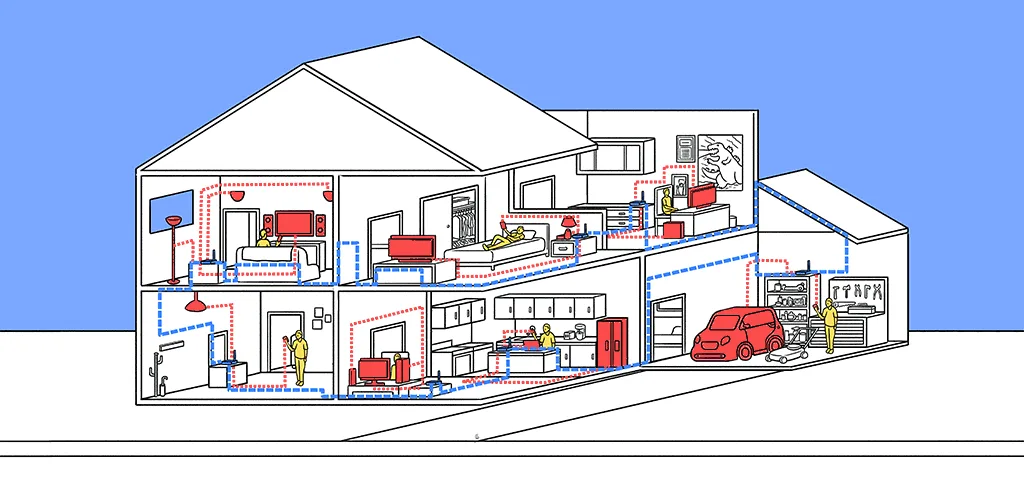

Installing system upgrades often requires complete replacement of your existing system and wiring

We remotely manage and maintain everything for you, saves your company money, time and labor
Eliminates the need for service calls with a hardware watchdog chip
Flexibility, scalability, we deploy access points in virtually any location, indoors and outdoors
Can be installed over your existing wiring. Reduces upgrade costs

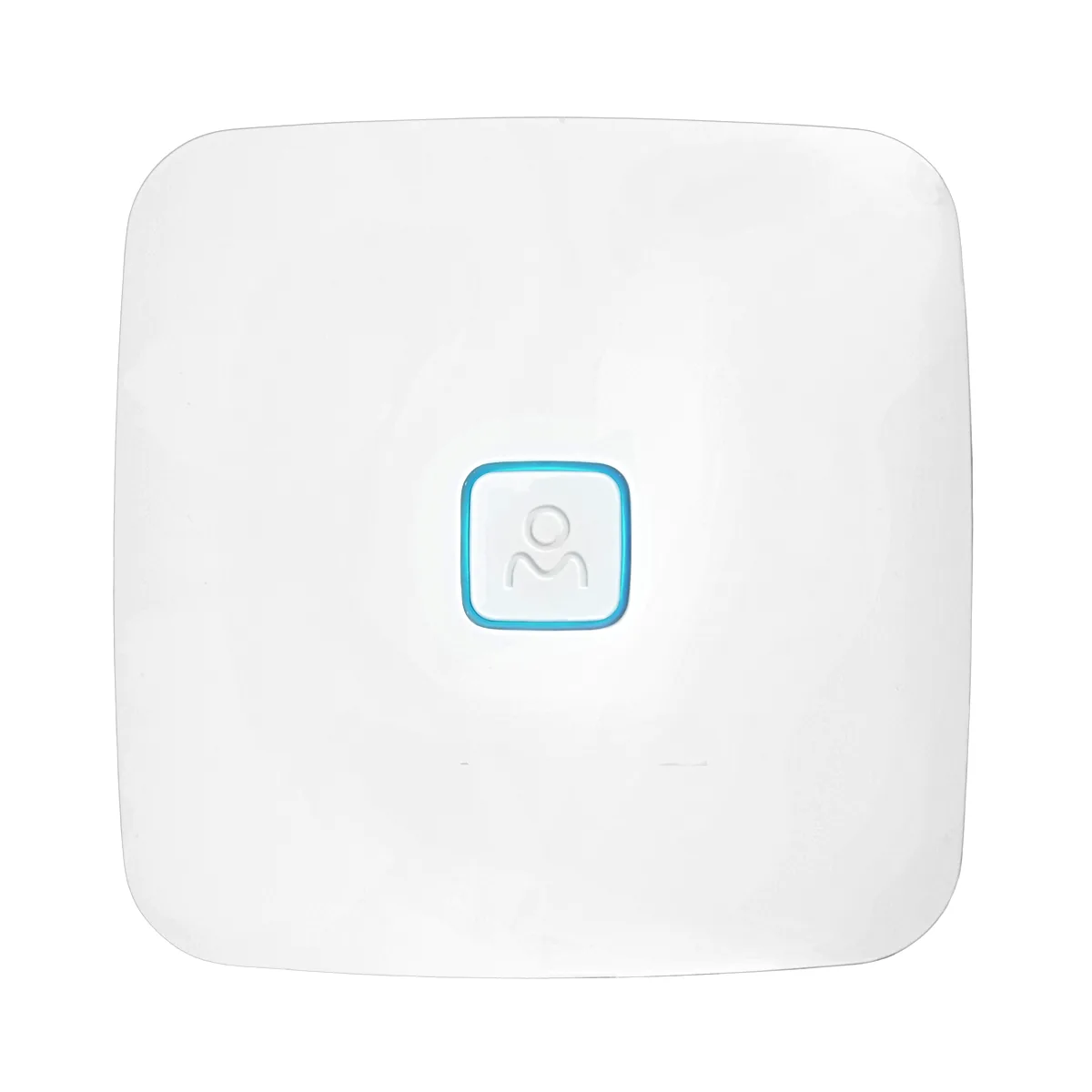

Product Specifications

MODEL	SI-AP40	SI-AP60	SI-AP42
Speed	300+867 Mbps	450+1300 Mbps	2.4GHz, 2 × 2,300 Mbps5 GHz, 2 × 2, 867 Mbps
CPU	Qualcomm Scorpion QCA9557		Qualcomm Dakota IPQ4018
Band	2.4 + 5 GHz 802.11ac concurrent		2.4 + 5 GHz 802.11ac wave 2 concurrent
MIMO (Multiple Input, Multiple Output)	Single User MIMO		Multi-User MIMO
Antenna	Four internal	Six internal	Four internal
Range (approximate)	75' - 150' indoor (3-4 walls), 400' - 600' outdoor
Max users	30-60 per AP	50-100 per AP	30-60 per AP
WLAN standard	802.11a /g/n/ac		802.11a/g/n/ac Wave 2
Memory	128MB DRAM DDR2, Data Rate of 800 Mbps		256MB DRAM DDR3, Data Rate of 1600 Mbps
USB	Yes
Self-forming, self-healing Mesh	Yes
Seamless roaming	Yes
Hardware watchdog CPU	Yes
Cloud Management	Yes
SSIDs	4
SSID to VLAN tagging	Yes
Public & Private SSIDs	Yes
Ethernet (WAN and LAN)	2 x Gigabit
PoE	Standard 802.3af		Standard 802.3af, Passive 18-24V (mode A, B, A+B)
Indoor/Outdoor Rating	CE certified for indoor/outdoor use, IP55
Certifications	EN 60950-1, EN 55032, EN 62311 (SAR & MPE), UL 60950-1, cUL 60950-1, EN 300.328, EN 301.489-1 and EN 301.489-17, EN 301.893, RCM , C-Tick 4268(2.4G) +C-Tick 4268 (5GHz), C-Tick 3548, ICES-003, IC RSS-247(2.4G) + IC RSS-246(5GHz), FCC Pat 15 B, C, E
Operating Temperature	-20° to 50° C
Size	6.69” x 6.69” x 1.2”

Scroll sideways to see all models
